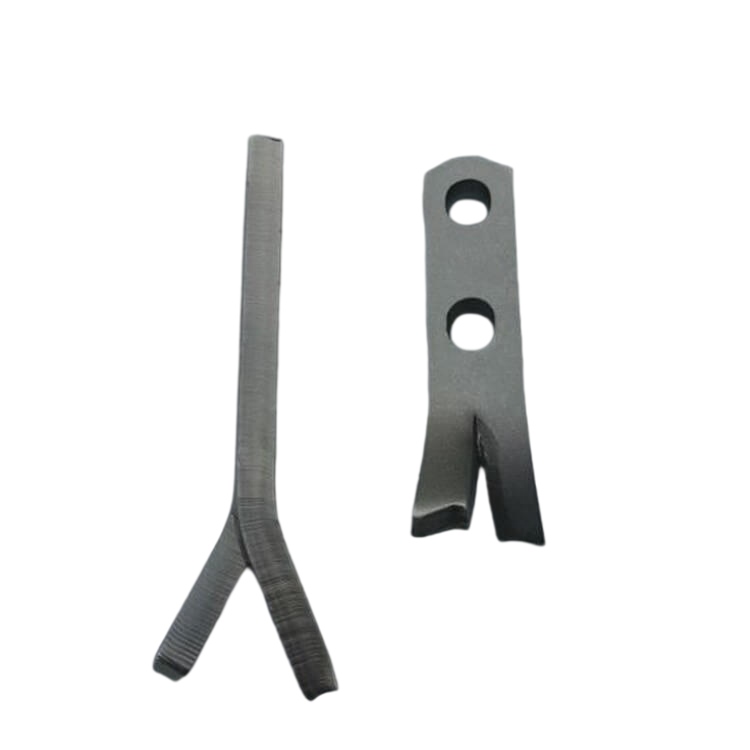

Spread Anchor is designed with a spread foot that produces exceptional pull out capacity. The Spread lifting anchor system is comprised of steel plate lifting anchors and ring clutch, as well as Rubber recess former for securing to the building panels. Spread anchor can be pulled in any direction as long as minimum edge distance is maintained.
The key benefits and features for erection anchors are as per below:
• high grade steel
•the load range from 0.7 -10t
•They are available in black, zinc plated, galvanized steel or stainless steel.

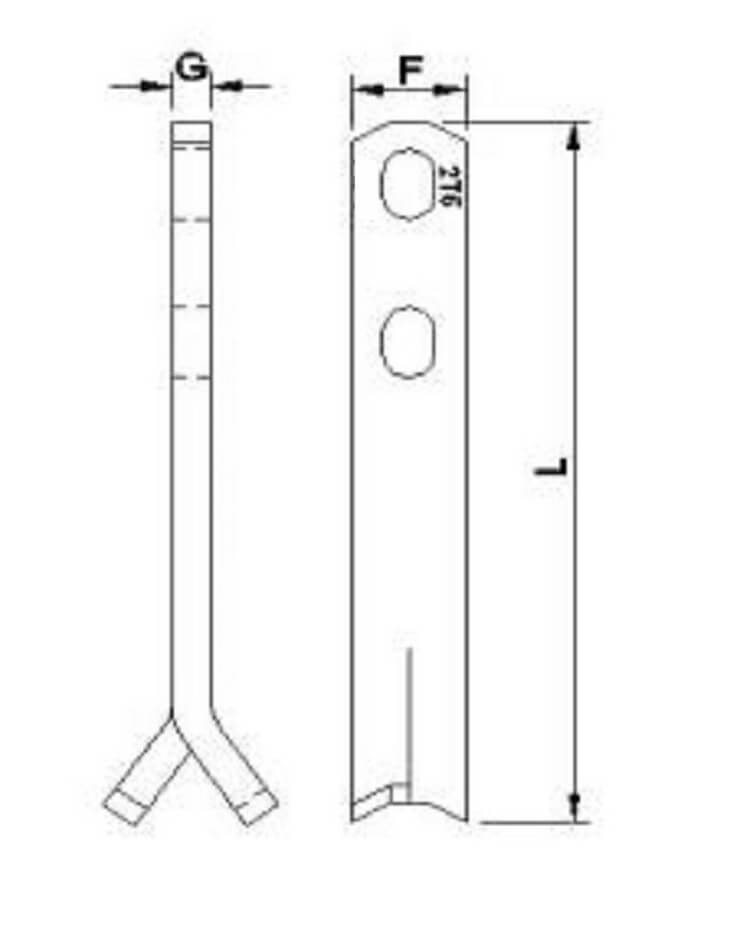

SIZE | 1.3 | 2.5 | 5.0 | 7.5 | 20 |
F (mm) | 30 | 30 | 40 | 60 | 60 |
G(mm) | 6 | 10 | 15 | 16 | 20 |
L (mm) | 160 | 130 | 240
400 |
260
420 |
370
520 |
Application: Spread Anchors are specifically designed for pitching and turning concrete units. They have specially designed nibs on the head of the anchor which prevent concrete from spalling when turning units.
After-Sales: Provide Installation document.
It is easy adaptable and it provides an efficient anchorage in thin panels, slabs columns, beams.
