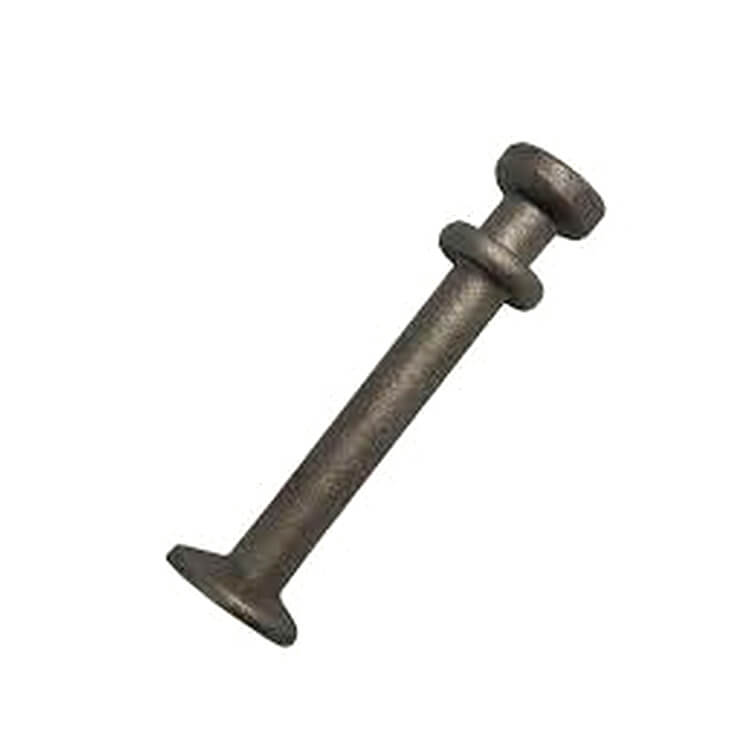

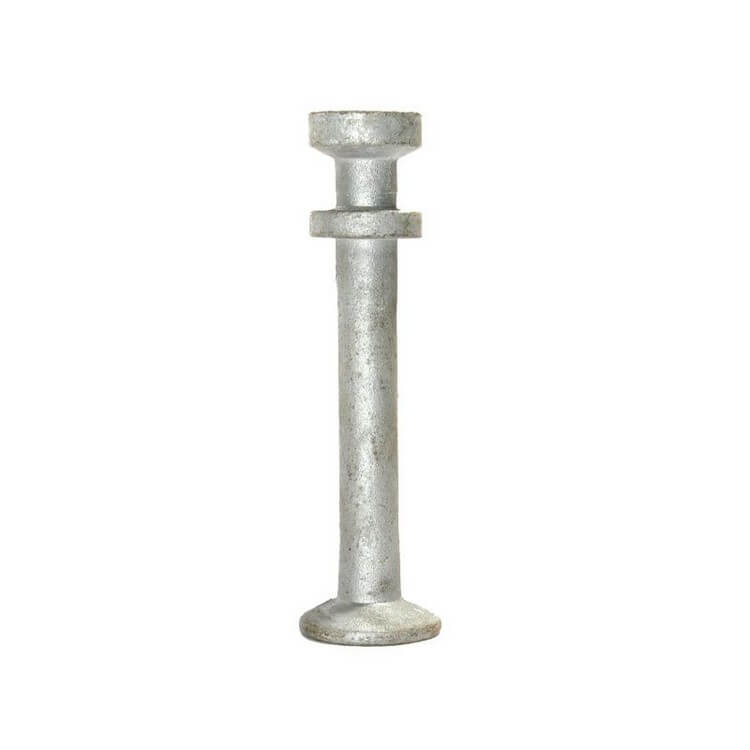

Double Head Anchor

Double head anchors are available in a wide range of sizes to withstand loads of up to 32 tonnes and are combined with lifting links for each assortment group. There is a suitable rubber recess former to ensure the concrete is poured in the correct shape. The permissible loads are clearly marked on the double head anchors to avoid mismatches or confusion, and the grooves ensure that larger links cannot engage with smaller anchors of a different class. The double head anchors are forged from material 20Mn2, Q345d and other alloy steel, with load groups ranging from 1.3t to 32t, the surface can be plain, galvanised, hot dip galvanizing. Special anchors for higher loads are available. Anchors are available in different lengths depending on the application. Longer anchors are used to reduce edge spacing or reduce concrete strength.

Description

Product Features

Double head anchor has the advantages of small volume, high load, convenient and fast construction and so on.

Product Parameters

1.3t×length
2.5t×length
5t×length
10t×length
20t×length

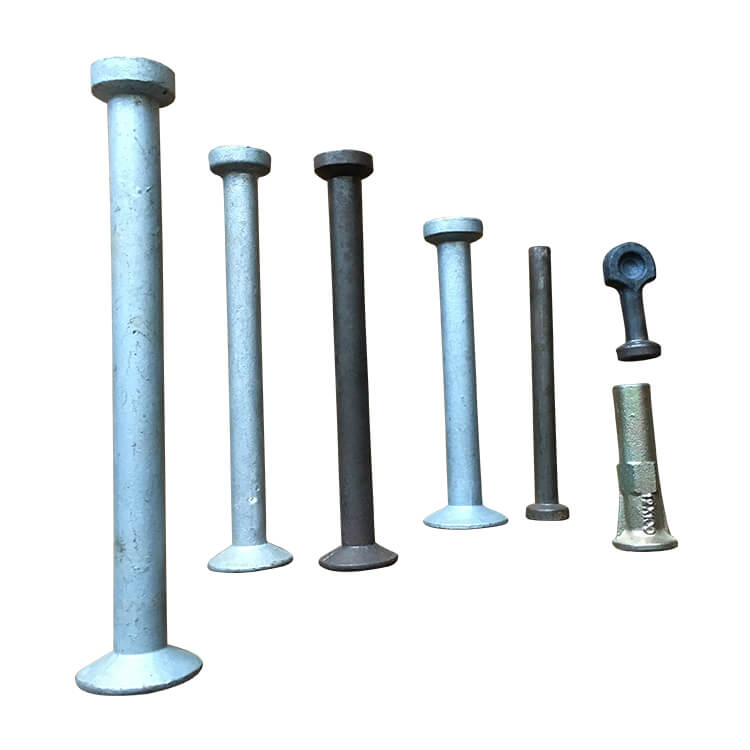

32t×lengthdouble head anchor 3

Application and After-Sales Service

Application: It is applied to buildings and matched with appropriate lifting clutch and rubber recess former according to the model.

After-Sales: Provide tensile test report and other test reports.
Double head anchor contains alloy steel castings, which are produced and checked according to the normal standard. According to the routine, each product is subject to magnetic particle flaw detection and strict sampling breaking test. The bearing coefficient used by users is also relatively high. There is no need to worry about the danger in the process of use. As long as you operate according to the normal standard operation steps, and the selected double head anchor is also appropriate, so there is no problem. Therefore, before using it, the user should still read the operation manual and operate in the correct way to ensure that you will not have problems.
